InLab
A new way to measure

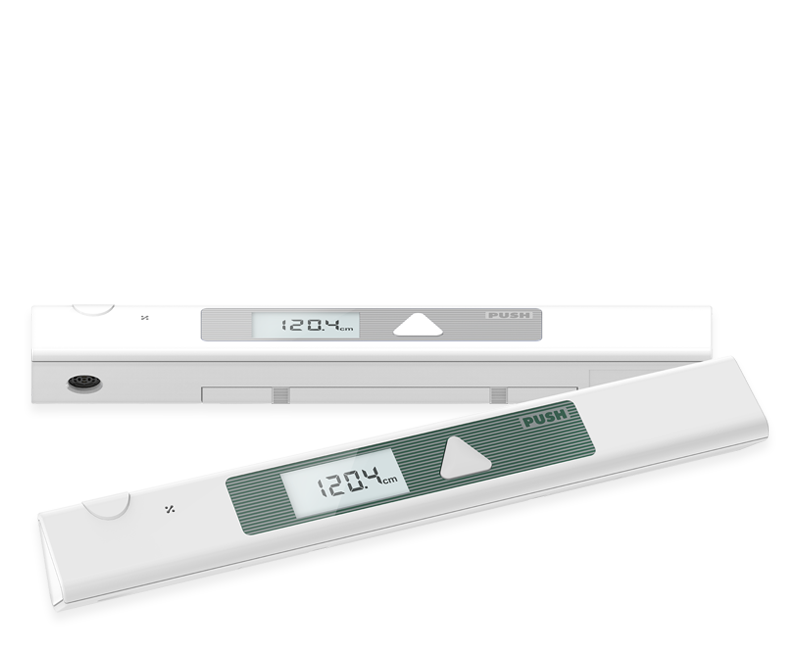

Accurately measures an individual's height using an ultrasound sensor.
Displays temperature and humidity in the surrounding nvironment.

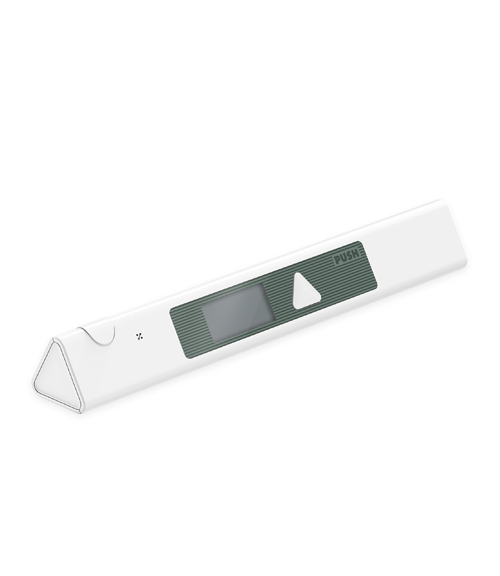

Sleek triangular design that fits in one hand.
Main Features
Broad Height Range
The measuring range is 1’8”-6’7”/50 – 200cm, it can be used by children and adults.
Quick and Convenient
The ultrasonic sensor accurately measures height in 1 second.
Patented technology
The temperature and humidity are displayed as soon as the power is turned on.
Simple Design
The InLab is light to carry around and has a sleek and simple design.
How to use
-
- 01
- Click the button and the indoor temperature and humidity will appear Click twice and will turn to height mode
-
- 02
- Make sure the InLab is leveled
-
- 03
- Once leveled, a PUSH sign will appear. Then press the button again
-
- 04
- Get precise measurement with just one push of a button
Specifications
-
- Measurement item
- Height, Temperature, Humidity
- Height Range
- 50~200cm
- Error Range
- ±0.5cm
- Other Measuring Range
- Temperature 16~40℃ (±1 ℃)
Humidity 30~80% (±7%)
- Measurement Duration
- 1sec. (Max. 7sec.)
-
- Sensor
- Ultrasound Sensor, Temperature Sensor,
Humidity Sensor
- Current Consumption
- Below 100mA
- Power Consumption
- DC3V (1.5V AAA Battery 4EA)
- Display Type
- LCD
- Colors
- Green, Pink, Blue, Grey
-
- Dimension
- 43(W) x 44(L) x 300(H) : mm
- Device Weight
- 238g
- Operation Environment
- 16~40 ℃, 30~80%RH
- Storage Environment
- -10~70 ℃
